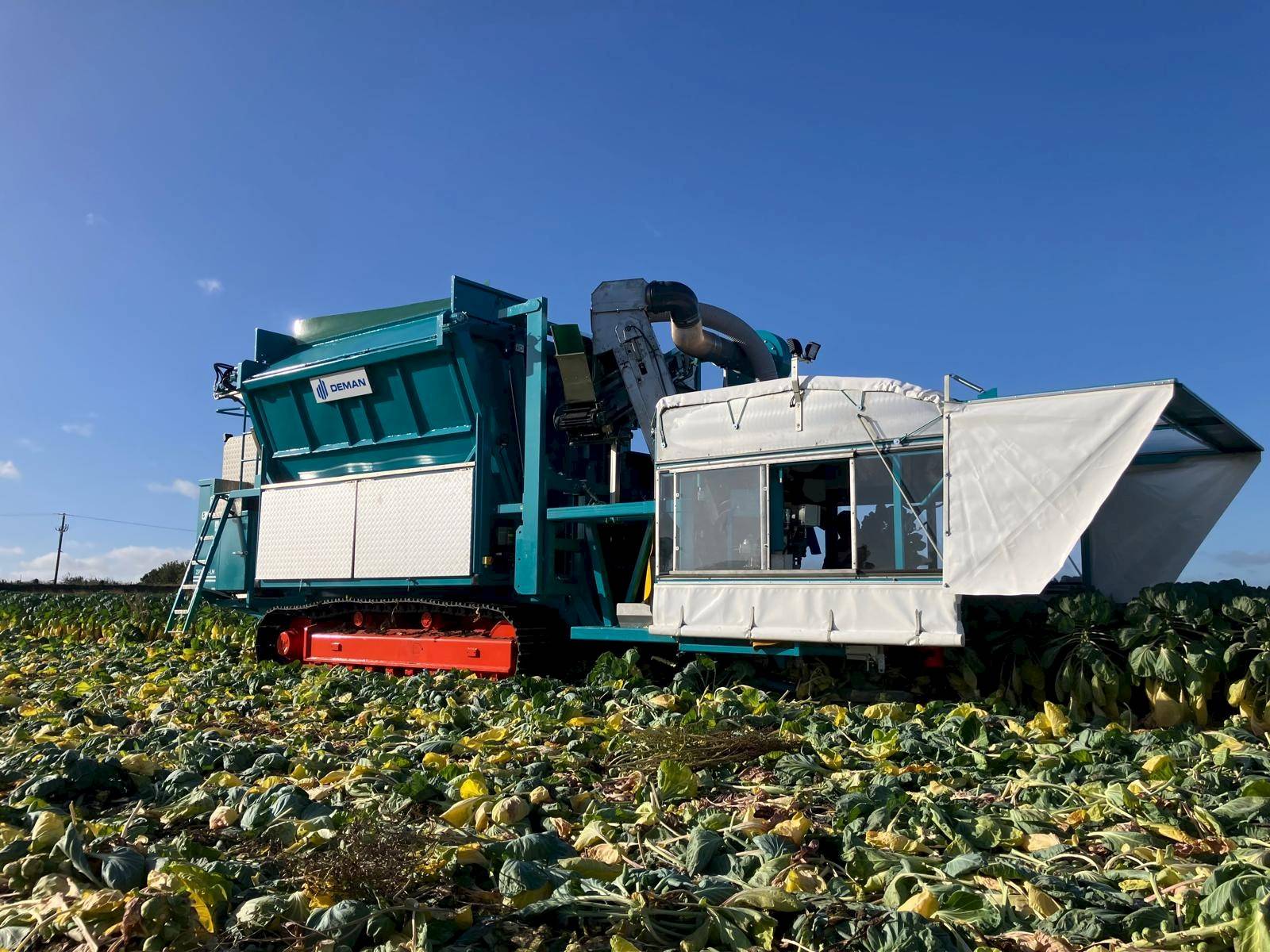

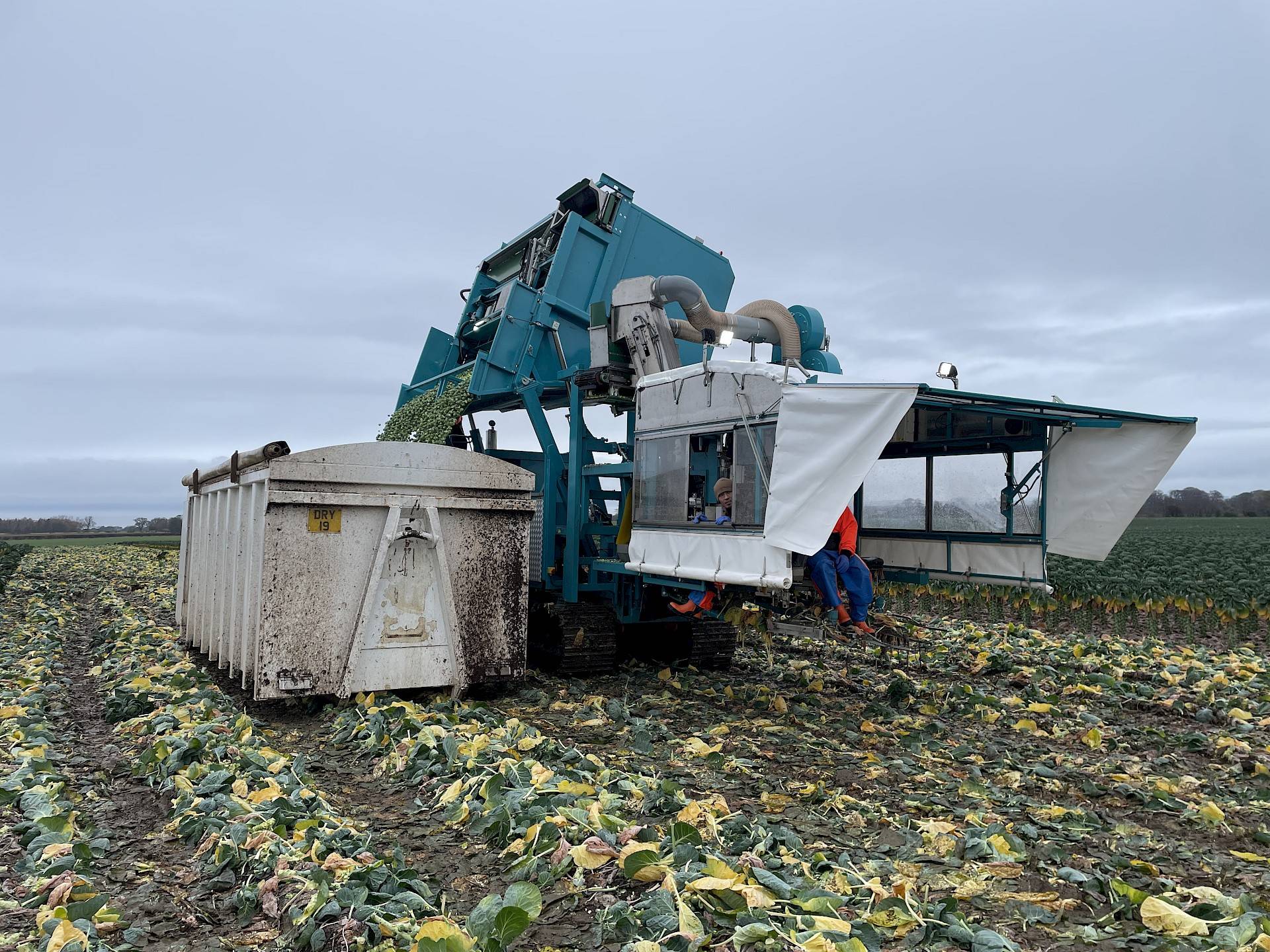

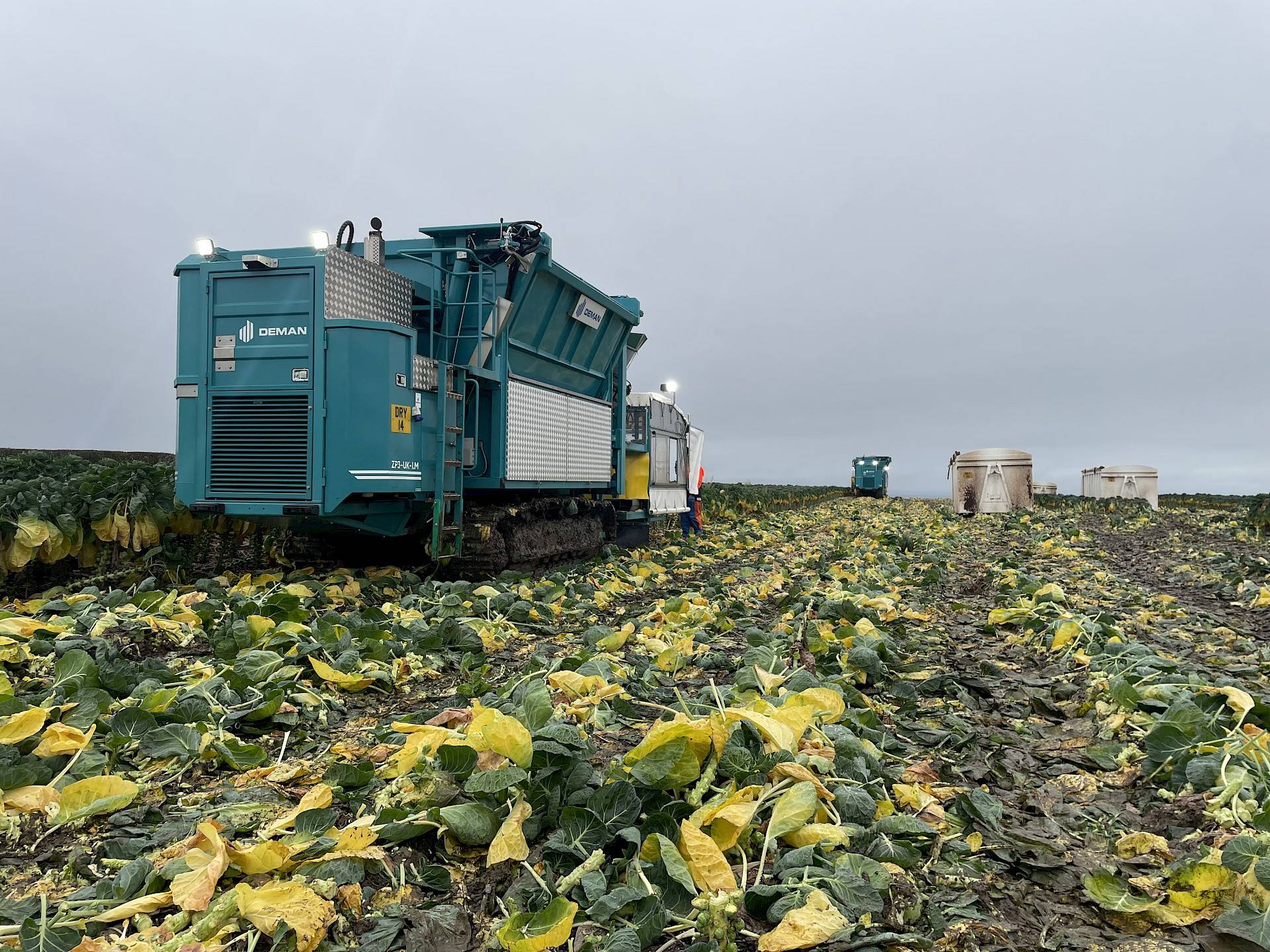

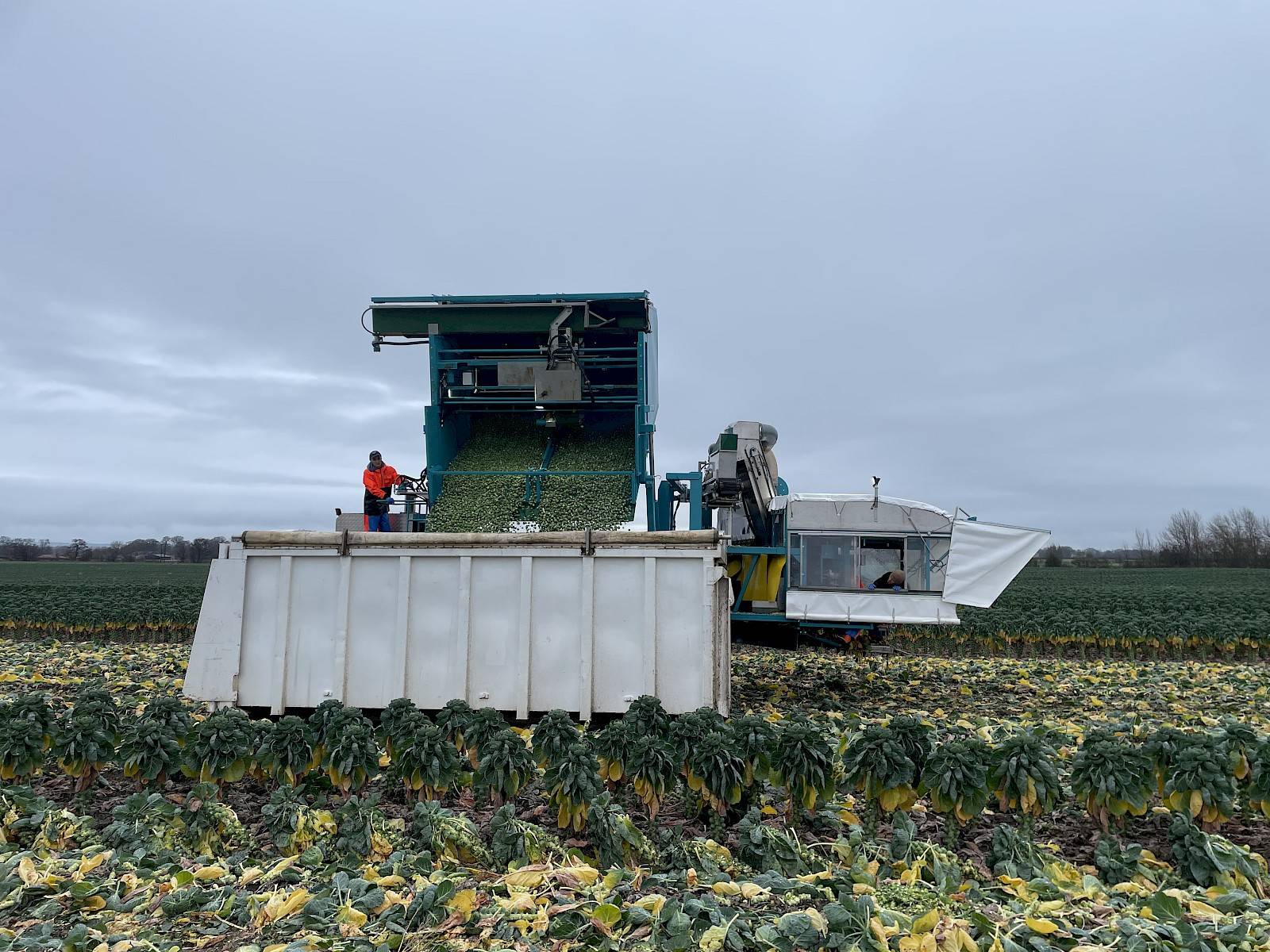

ZP3-UK-LM: Self-driving sprout harvester III-row for UK market

The ZP3 sprout harvester is equipped with three picking elements. The self-propelled machine is able to harvest three rows of sprouts at once, ensuring an optimal performance all the way through the harvesting process.

This machine has been specially designed for farmers who plant their sprouts at 60-65 cm (23-25 inches). Thanks to the sloping cab, operators have the same amount of space as in conventional machines, but are still able to harvest these narrow rows.

Optimal performance.

The bigger brother of the ZP2, an expanded version of our sprout harvester, self-propelled, on tracks, with three picking elements to harvest three rows of sprouts simultaneously. With room for three people at the back of the harvester, a reliable machine for an efficient harvest.Thanks to the lift mast design, the chassis remains nice and flat when the cab moves up and down.



Standard configuration

  • Eject rollers
  • Centering Mechanism
  • Storage for personal materials (side doors)
  • Radio with bluetooth
  • Digital Dashboard
  • Centralised HMI for operations and visualisation
  • Camera with 3 channels
  • Cabin heating 5DL Airtronic
  • Row distance between Brussels-sprouts 600mm (23.6”) - 650 mm (25.6”)
  • Twin Turbine Technology
  • Centralised greasing system that is controlled by HMI
  • Undercarriage S30-30
  • FPT diesel engine N45 STAGE V, 105kw at 2200 rpm
  • Weight empty: aprox. 16000 kg (35000 lb)
  • Length: 9450 mm (372 inch) (3m-118inch) bunker
  • Width: 3144 mm (124 inch)
  • Height: 3400 mm (134 inch)

Optional

  • Unloading conveyor belt on bunker
