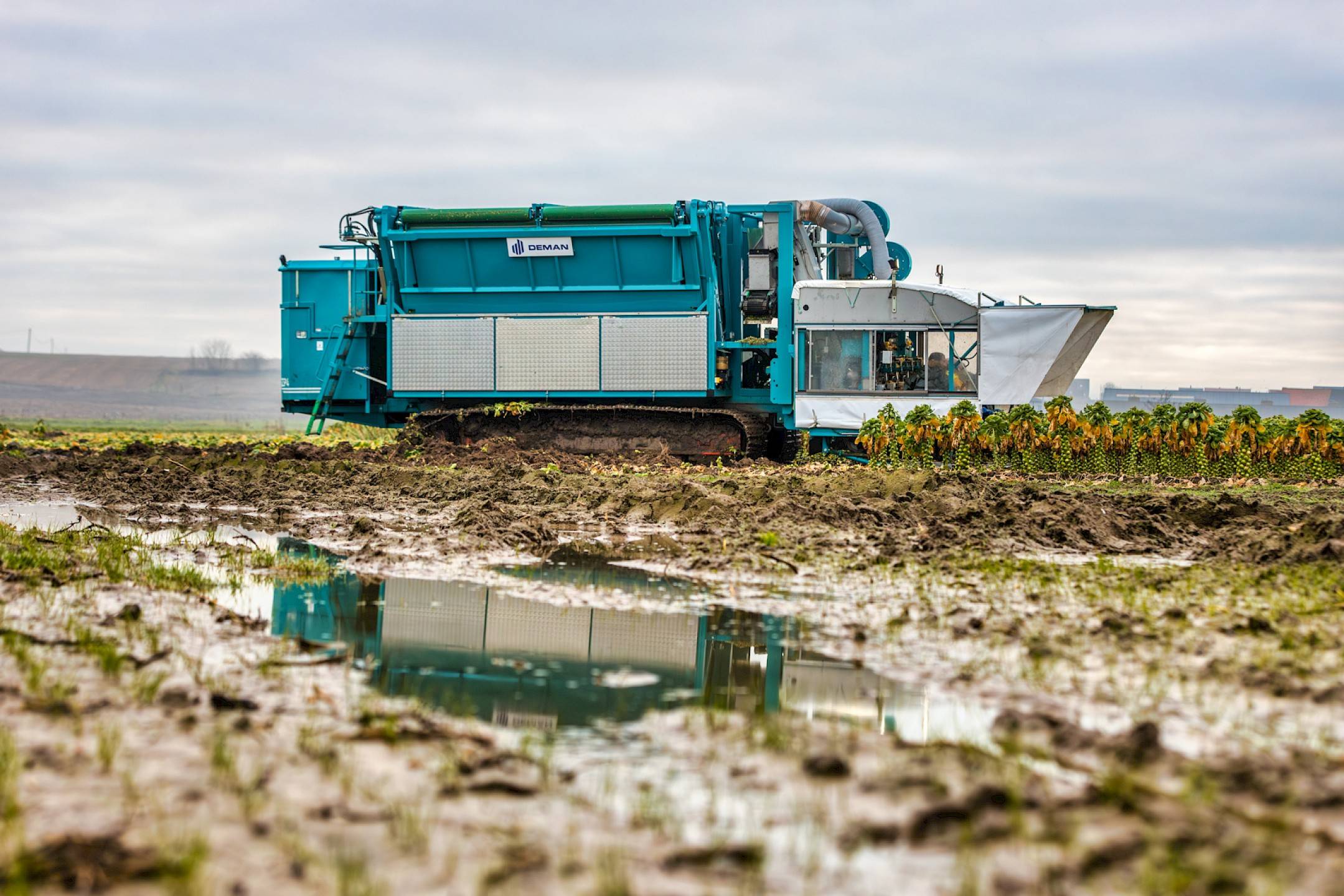

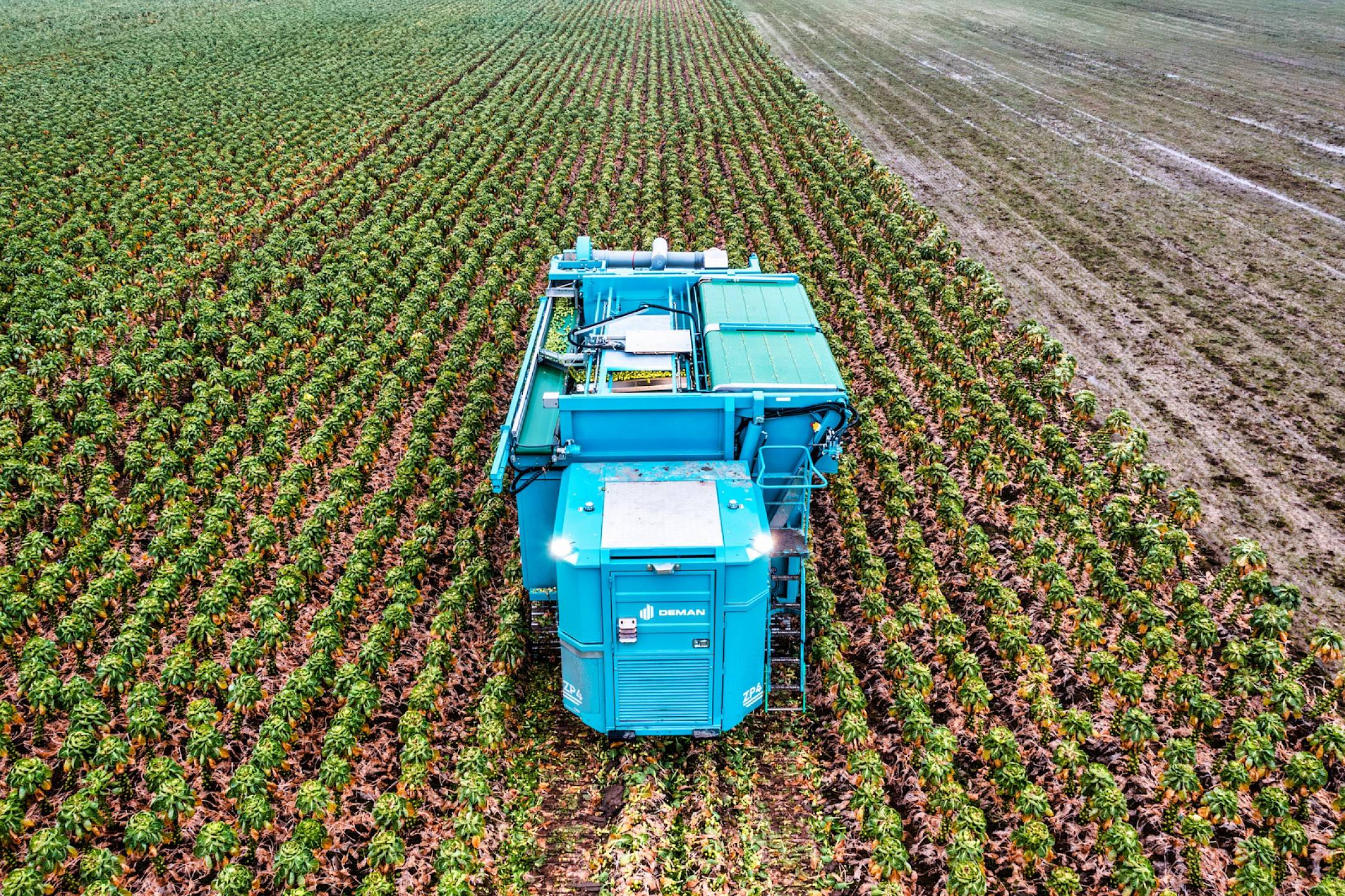

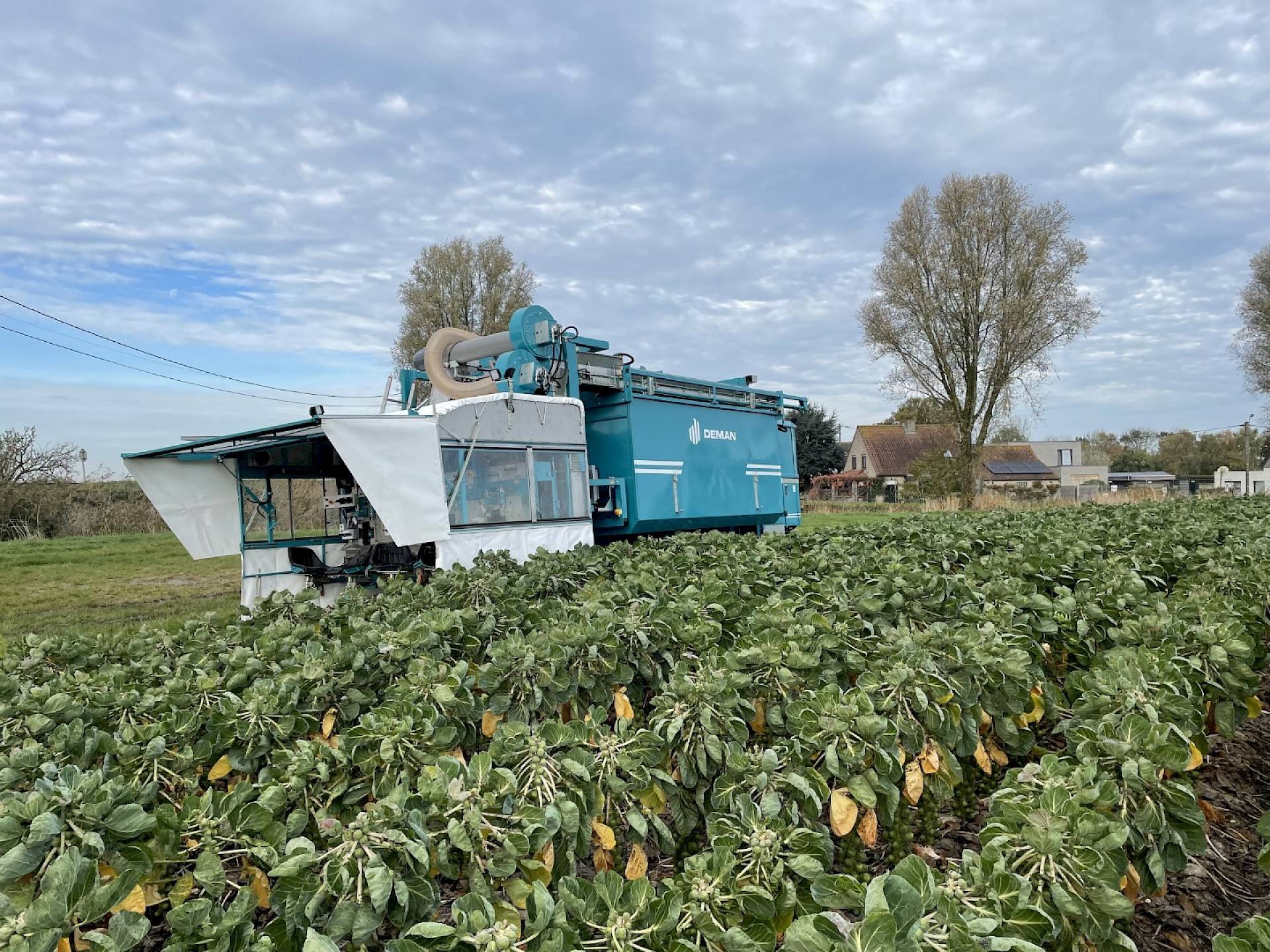

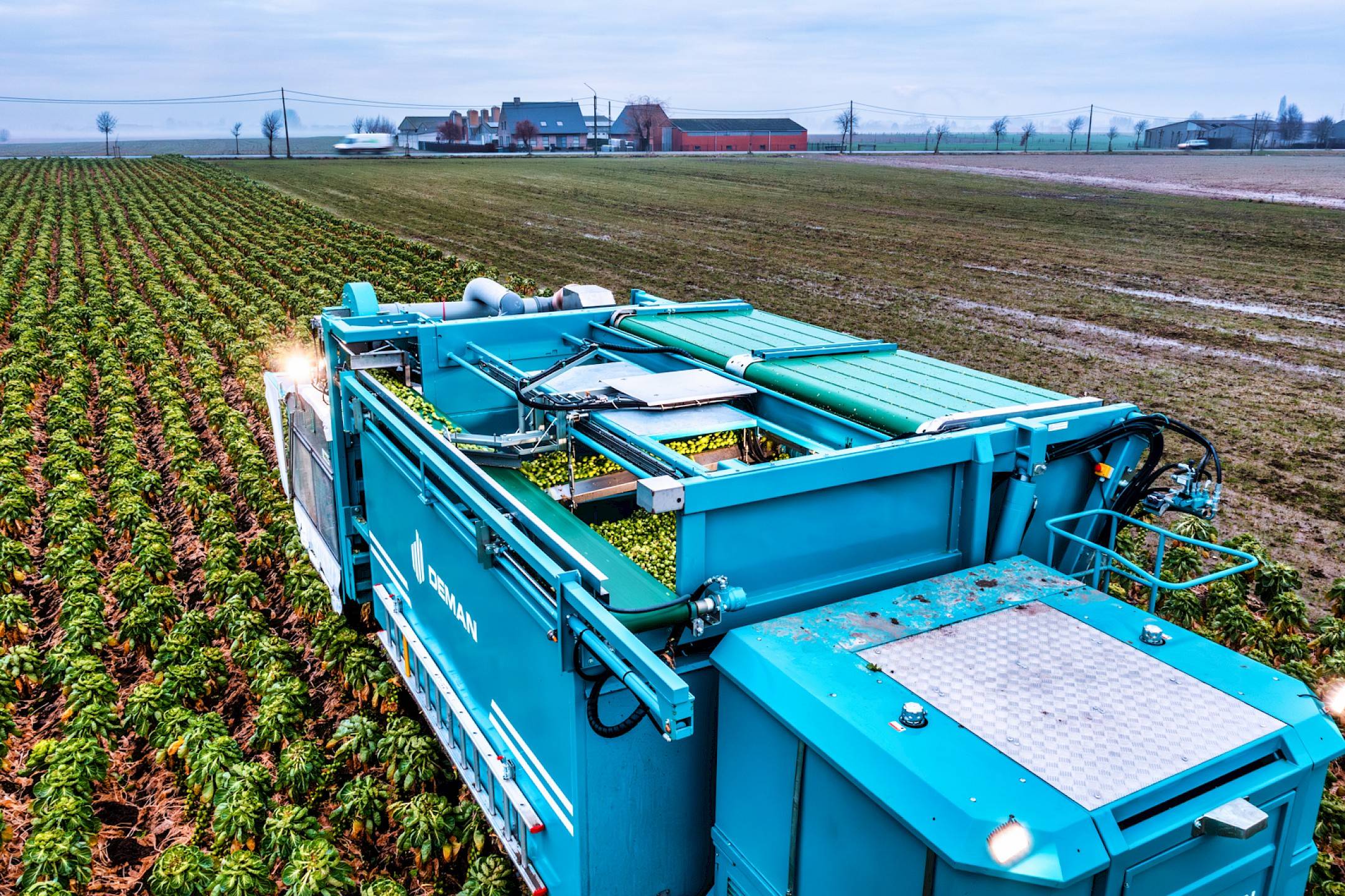

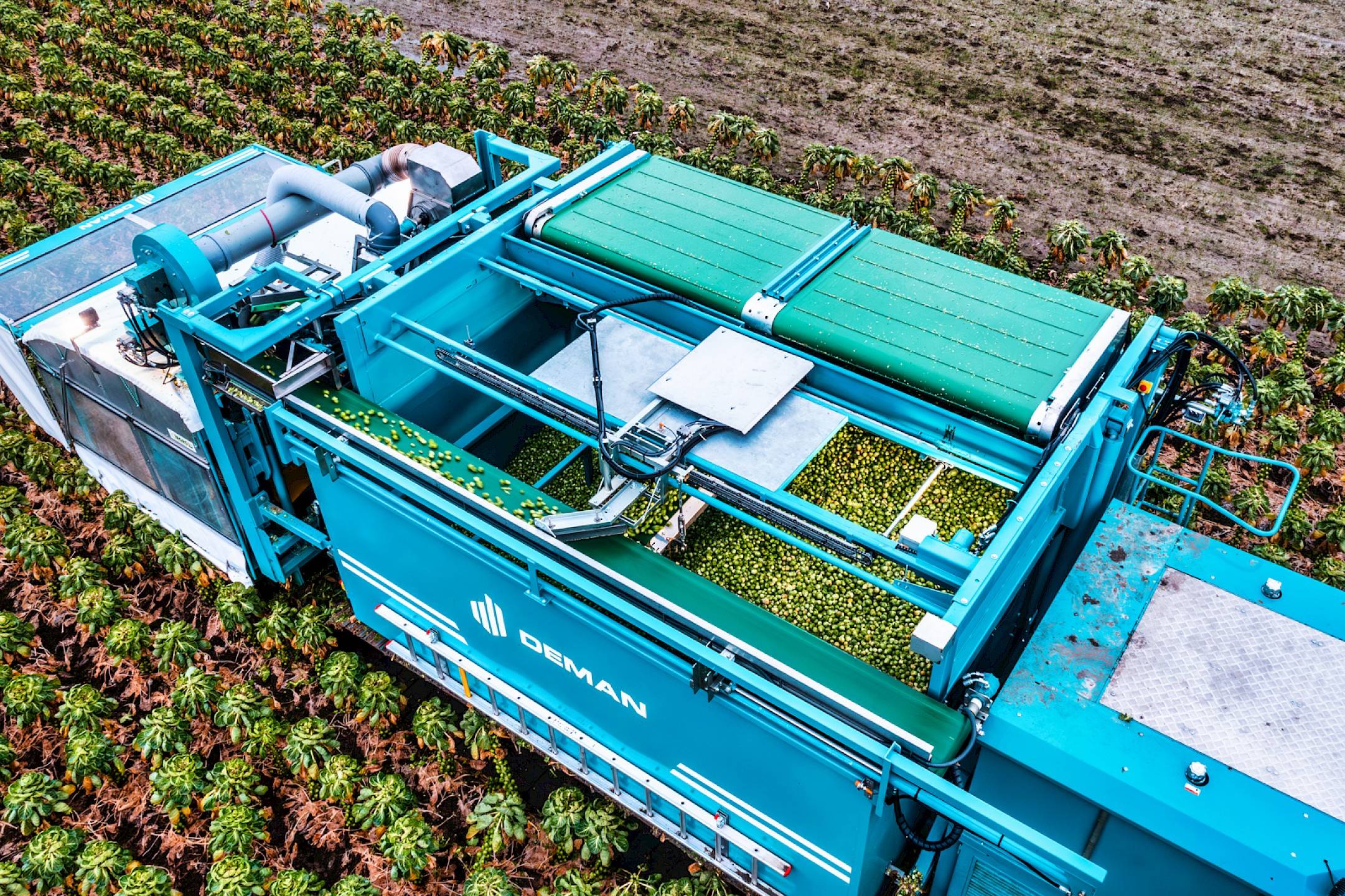

The ZP4 sprout harvester is equipped with four picking elements. The self-propelled machine is able to harvest four rows of sprouts at once. A high performing machine that harvests your sprout crop in a rapid and efficient manner.

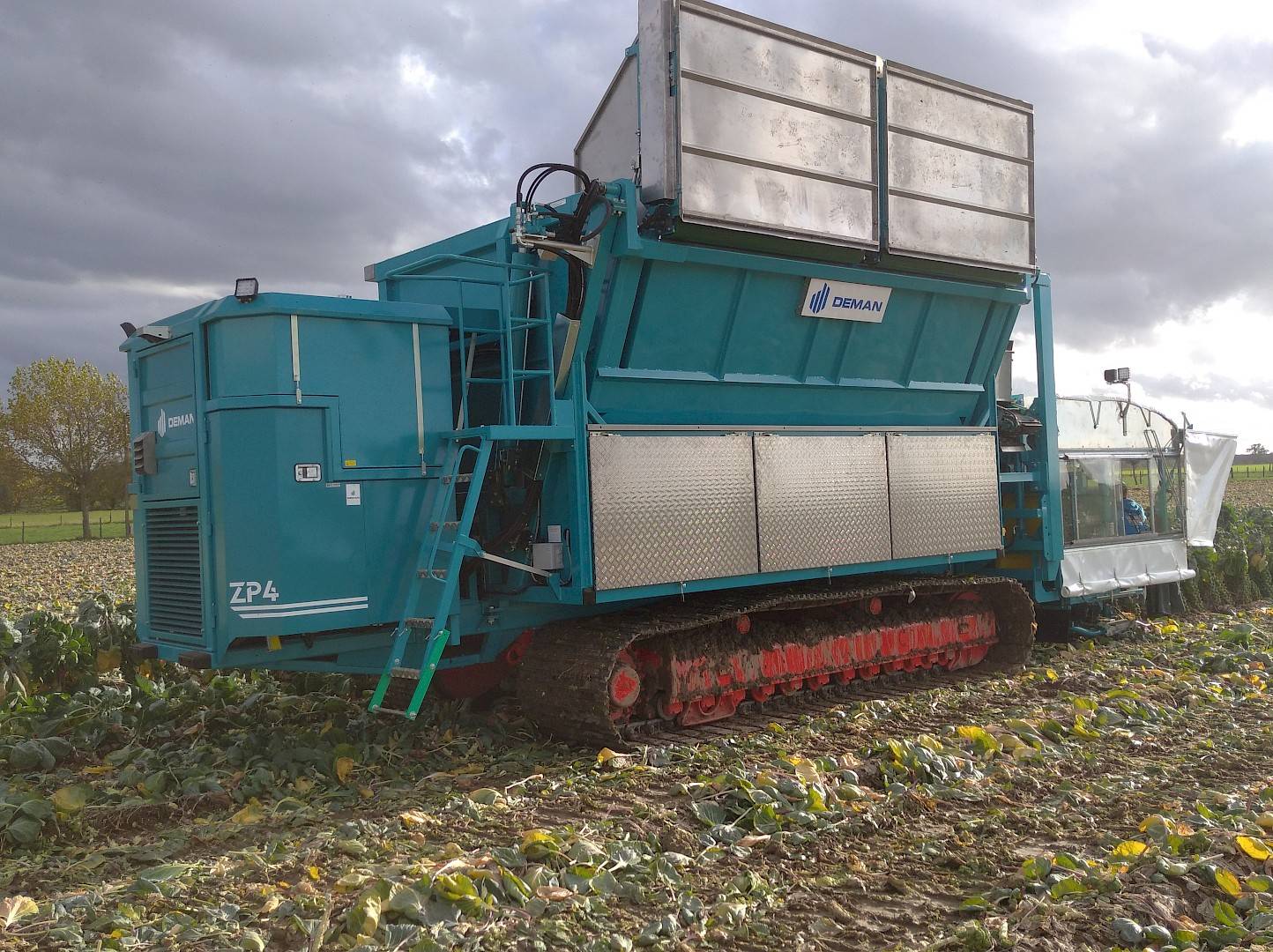

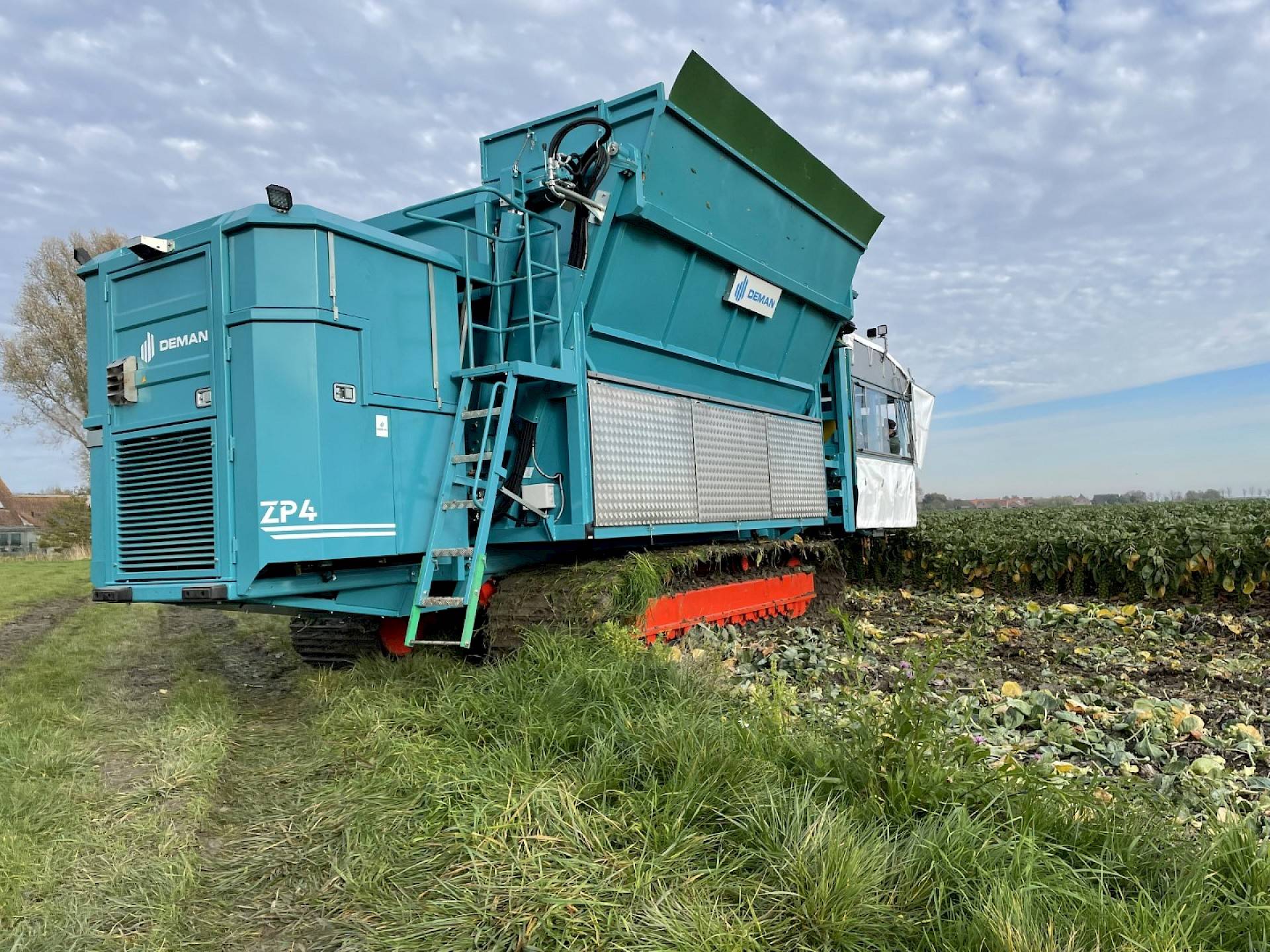

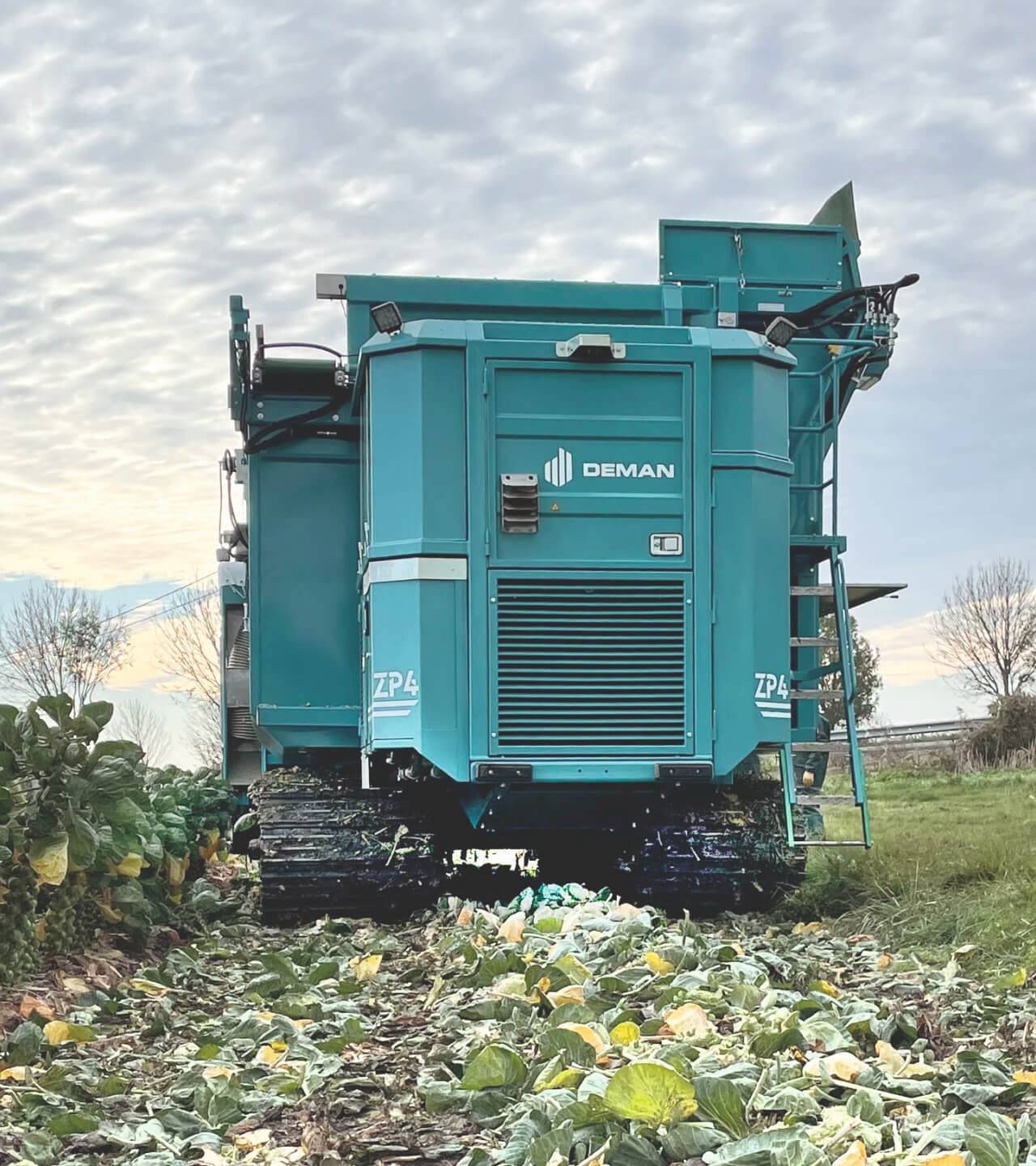

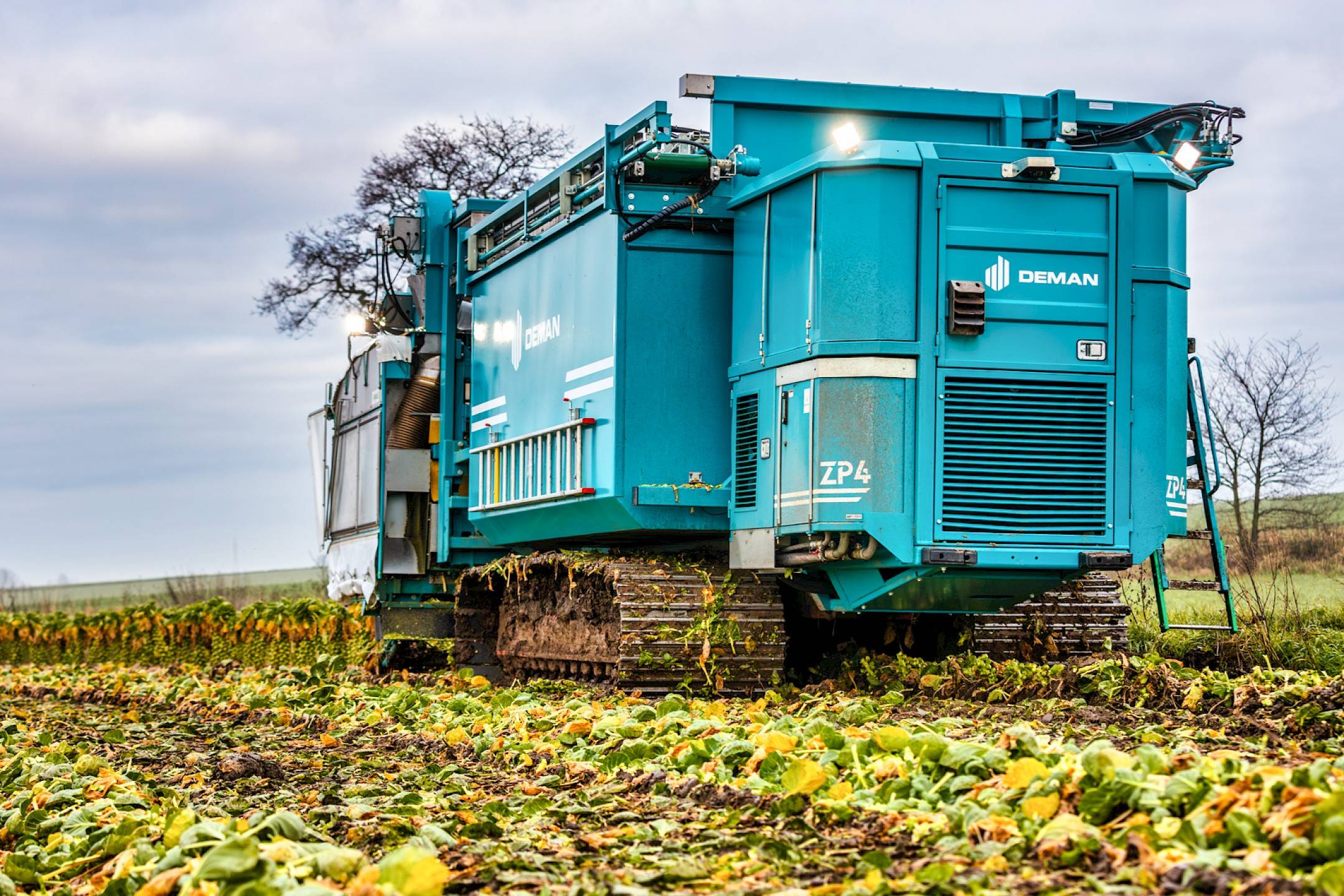

ZP4: Self-driving sprout harvester IV-row
Reliable and efficient

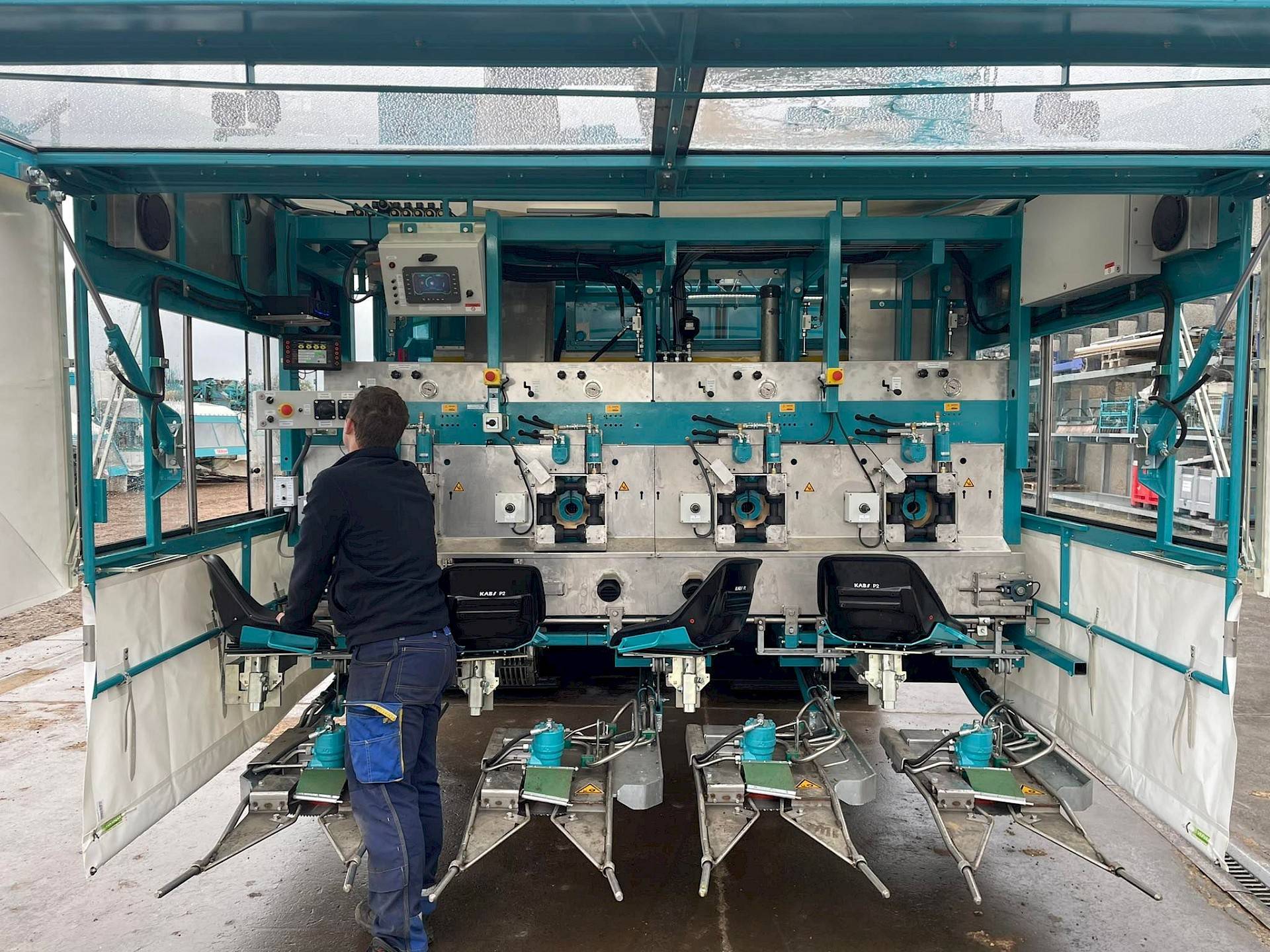

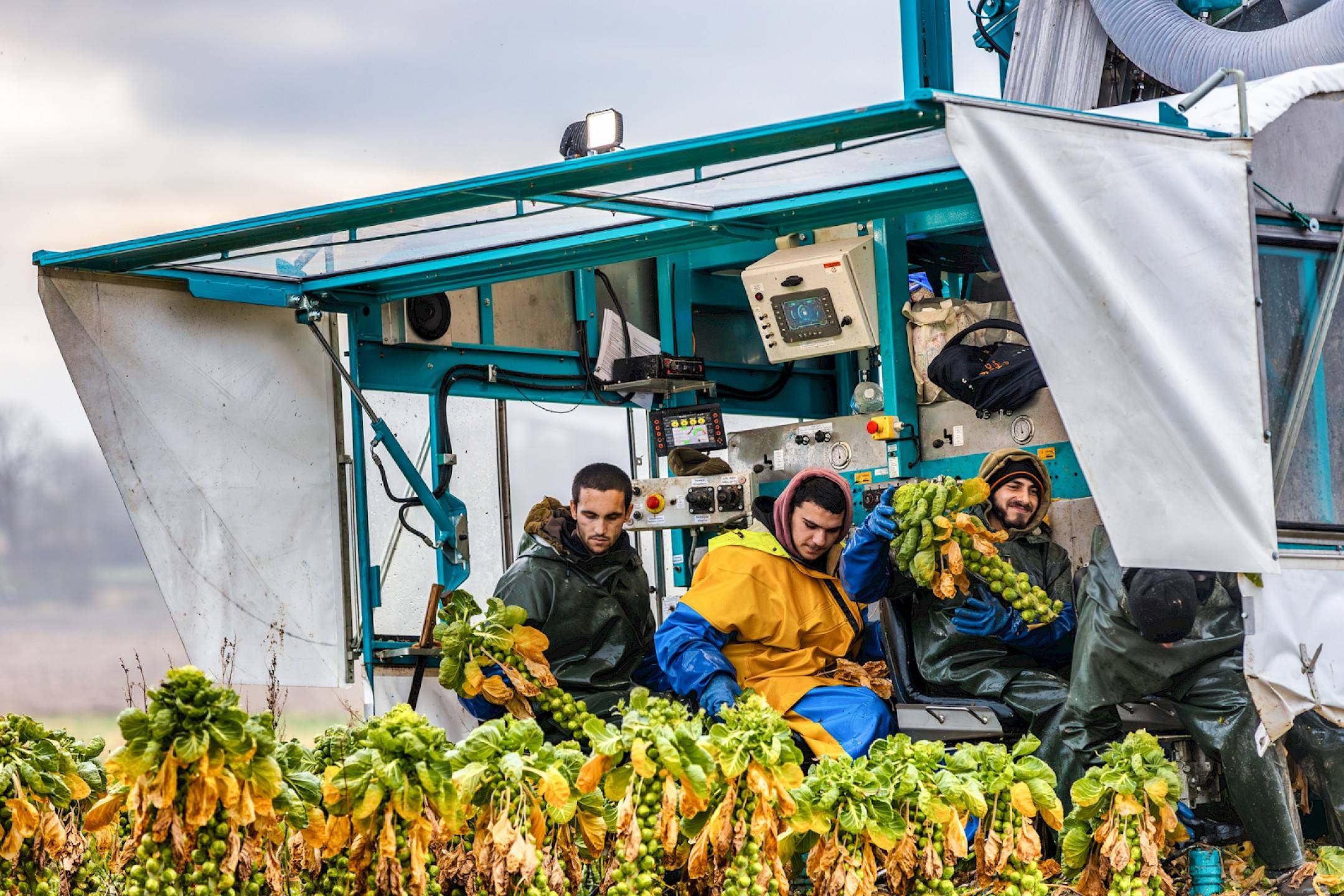

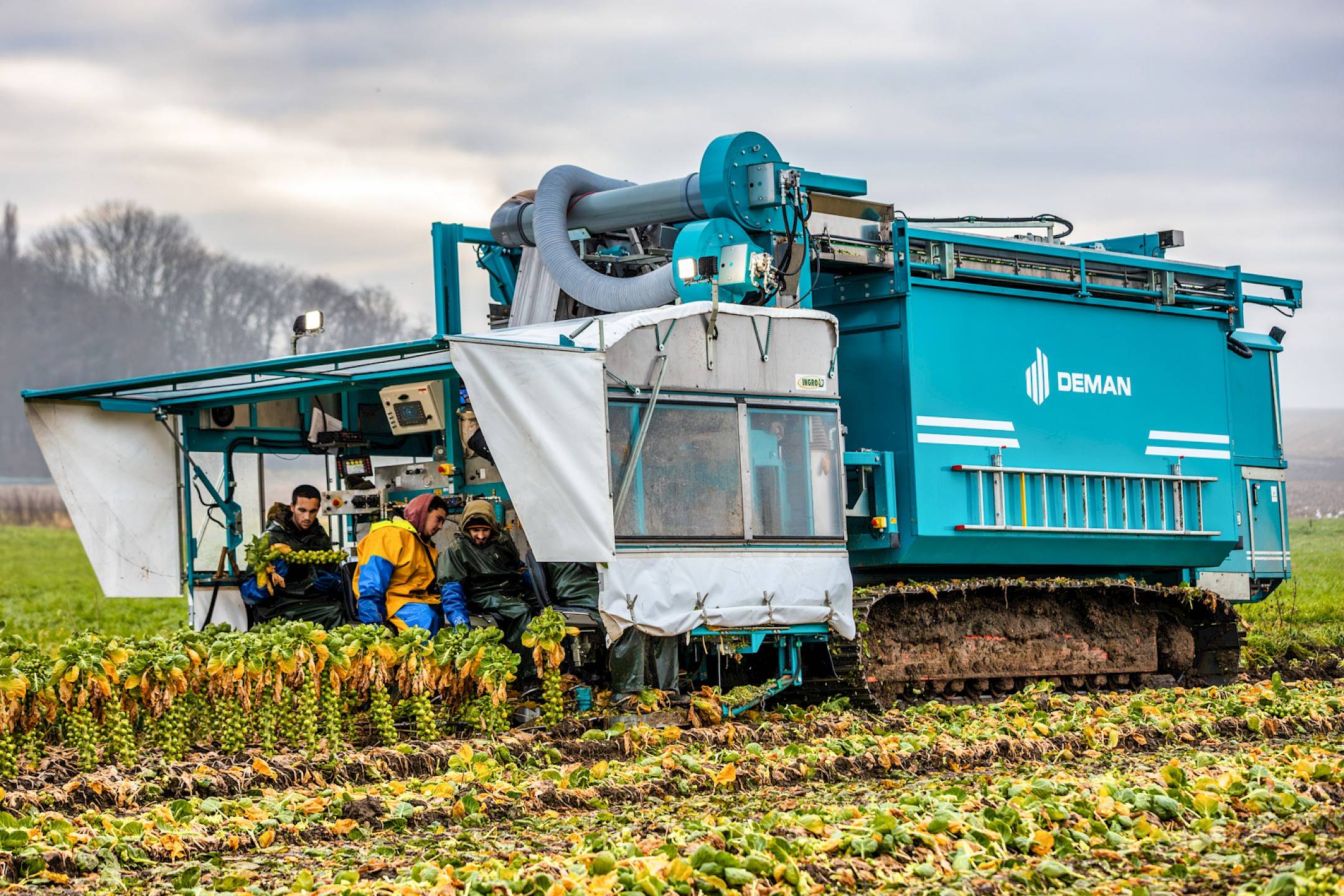

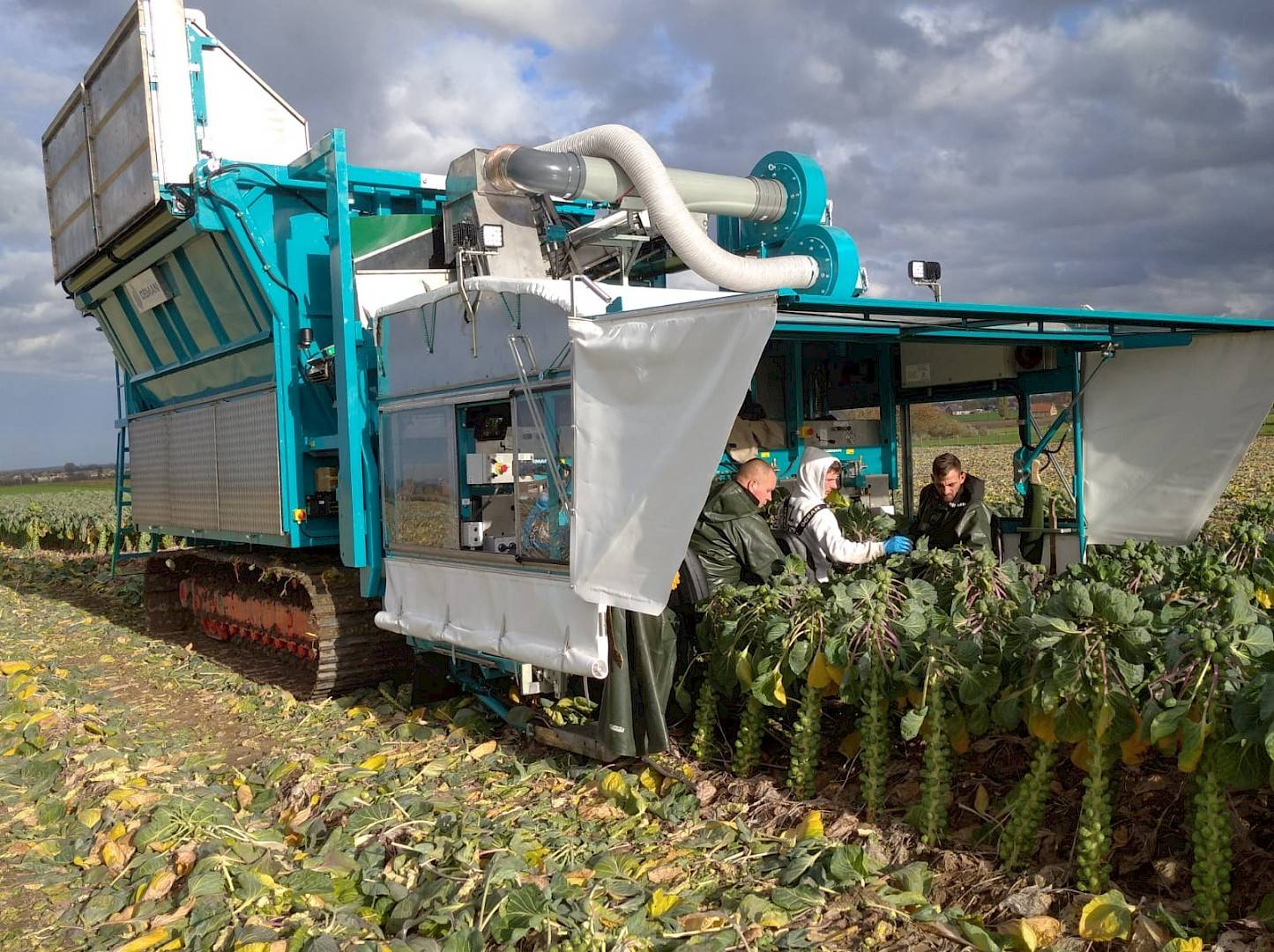

The pater familias among our broad range of sprout harvesters. A powerful machine that drives autonomously across the field and is capable of harvesting four rows of sprouts at the same time. The harvester can seat four people at the back of the machine.
Build to last
All components of the Deman plucking system are developed and produced in-house with one goal in mind; providing the best harvesting results in every condition. Each component has been studied in detail to obtain an extremely reliable system. Standardized components are carefully selected and are available worldwide.
Standard configuration

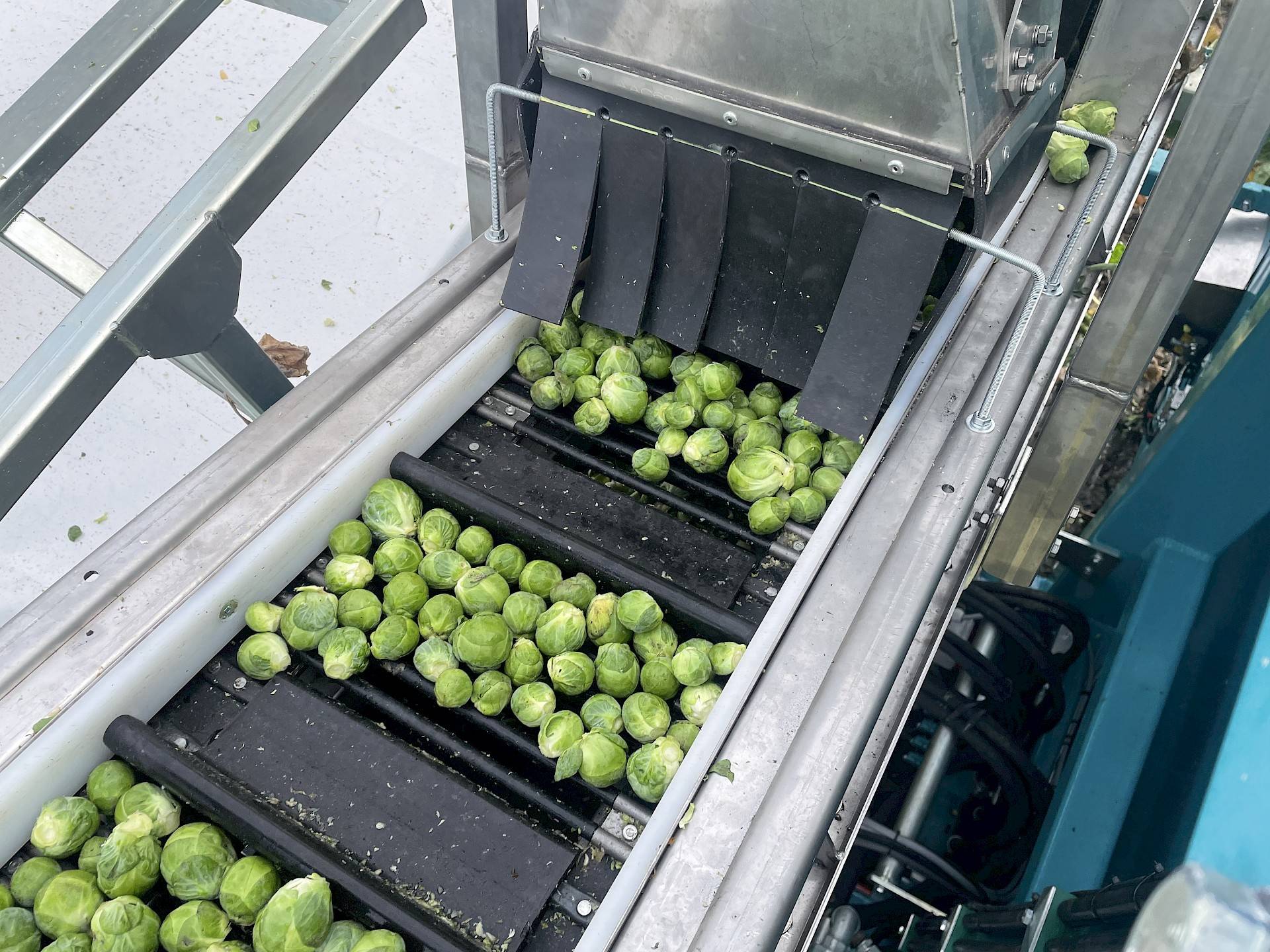

- Eject rollers
- Centering Mechanism
- Storage for personal materials (side doors)
- Radio with bluetooth
- Digital Dashboard

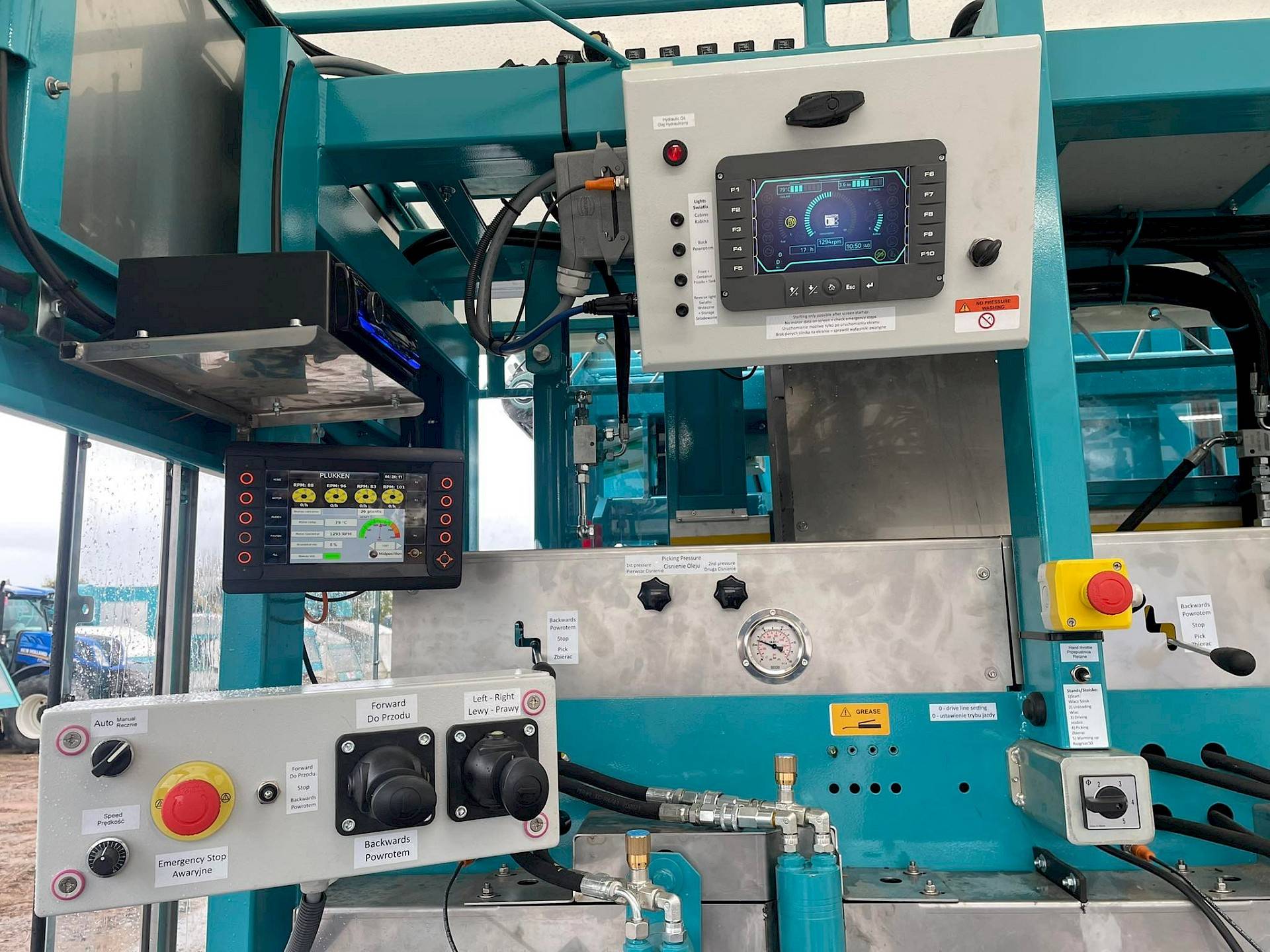

- Centralised HMI for operations and visualisation
- Camera with 3 channels
-

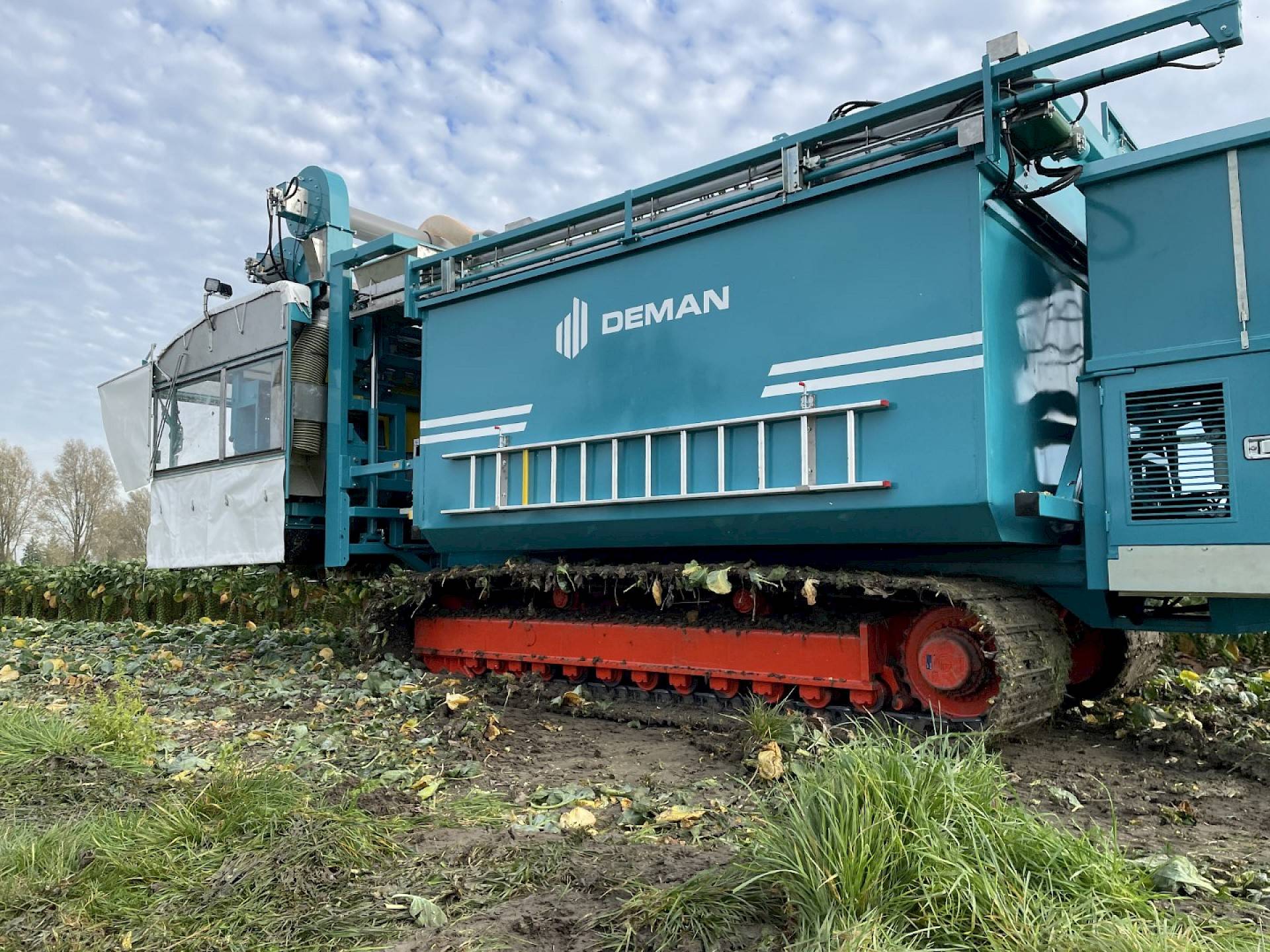

Undercarriage S30-30
- 54 plates for undercarriage width 900 mm (= 3.5m long bunker)
- Bosch hydromatic-Transmetal Bonfiglioli-Berco chains
-
Undercarriage S30-30
- 57 plates for undercarriage width 900 mm (= 4m long bunker)
- Bosch hydromatic-Transmetal Bonfiglioli-Berco chains
- FPT diesel engine N45 STAGE V, 125kw at 2200 rpm
- Cabin heating 5DL Airtronic
- Length: 9135 mm (3.5m bunker) - 9634mm (4m bunker)
- Width: 3450 mm
- Height: 3420 mm
- Weight empty: aprox. 21000 kg (46700 lb)

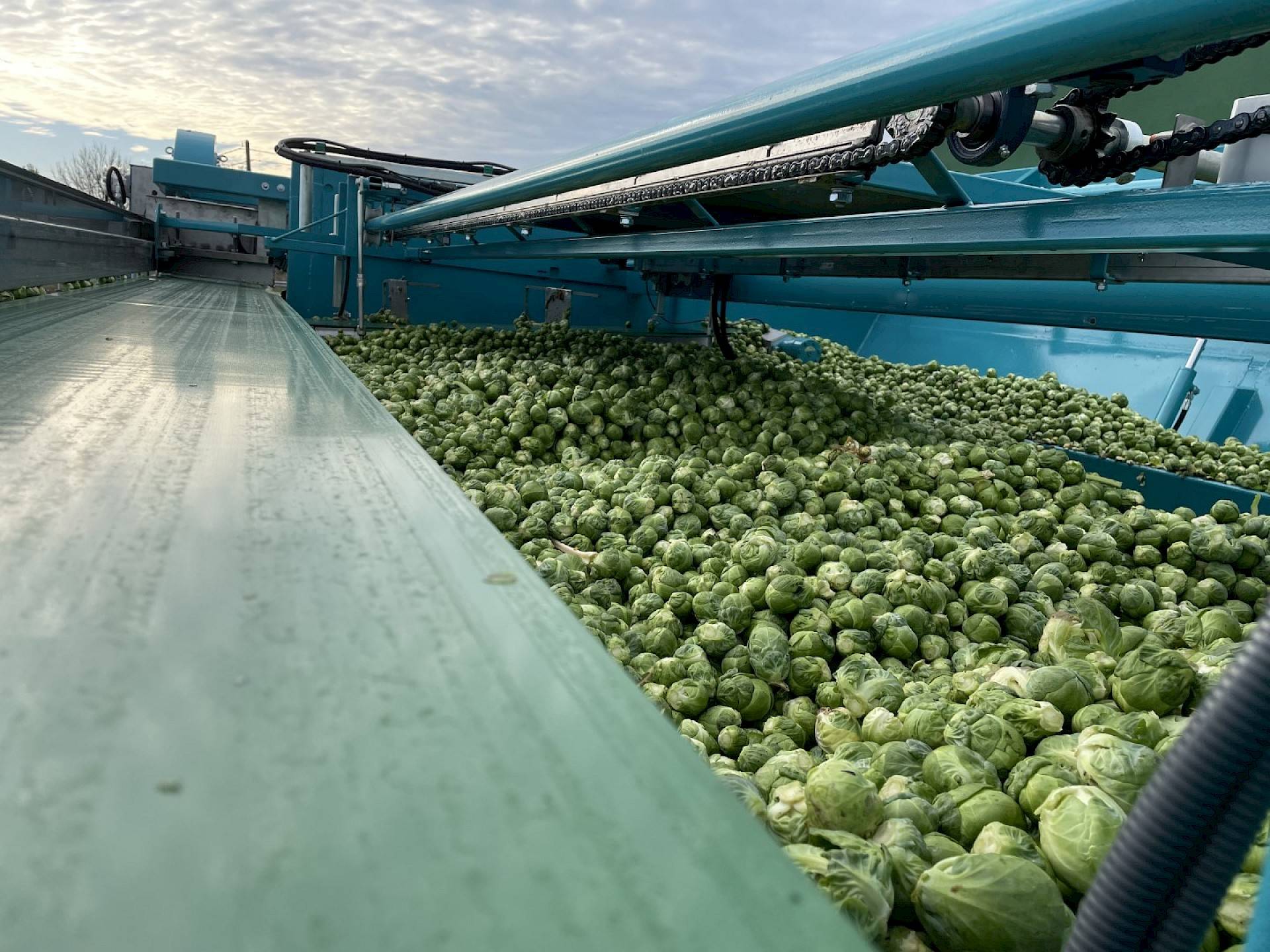

- Bunker volume: 17m. (3.5m long) or 19m. (4m long)
- Row distance between Brussels-sprouts 700 mm (27.6”)- 750 mm (29.5”)
- Diesel tank: 950l
- Twin Turbine Technology
- Centralised greasing system that is controlled by HMI
Optional
- Row distance between Brussels-sprouts 600mm - 750mm
- Unloading conveyor belt on bunker
- Hydraulic quick couplings for disassembly of picking portion-row work
- Row work with plate width 600mm
