ZP4-OS: Self-driving sprout harvester IV-row optisort

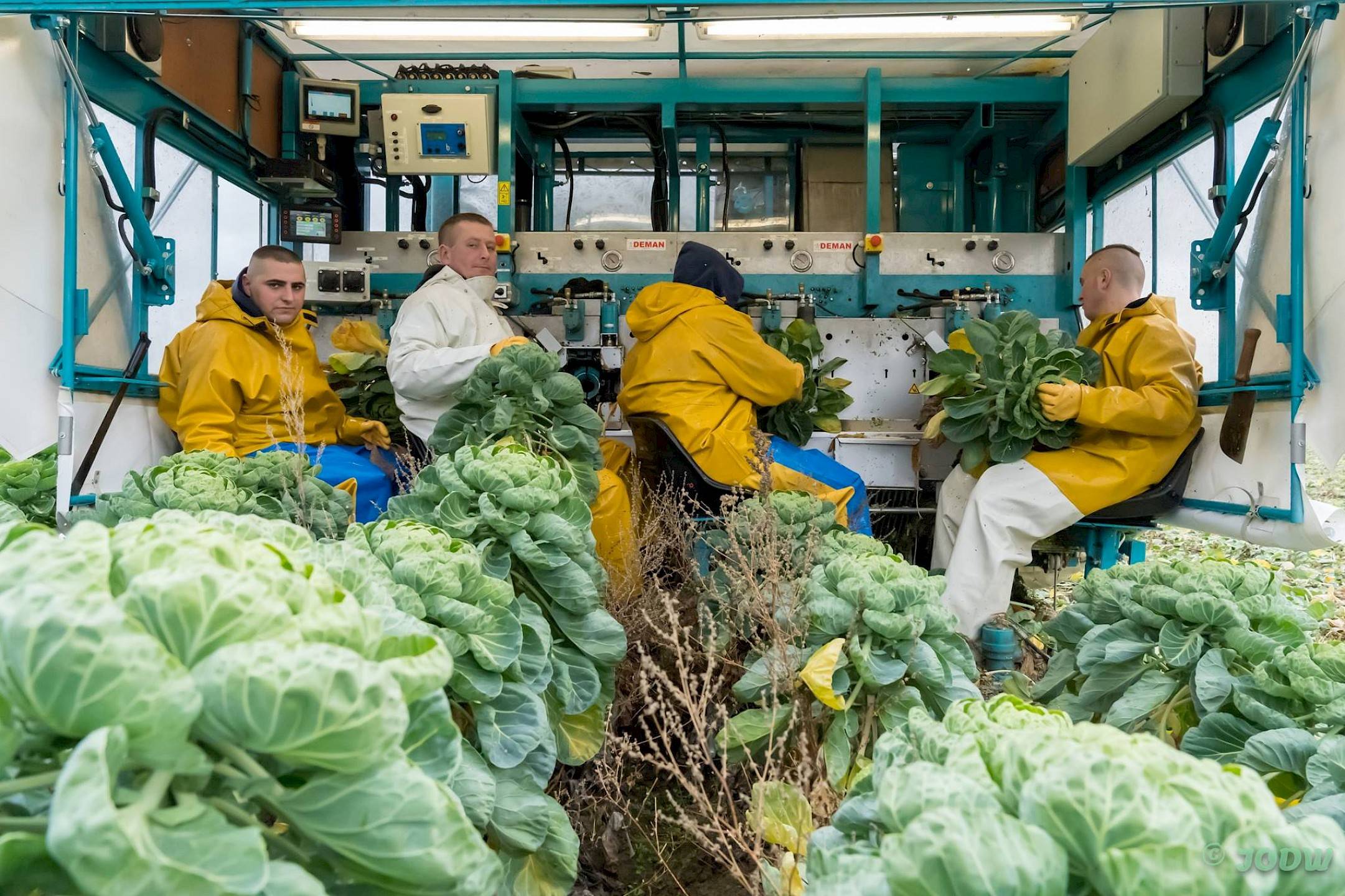

The ZP4-OS sprout harvester is equipped with four picking elements. The self-propelled machine is able to harvest four rows of sprouts at once and seats four people at the back of the machine.

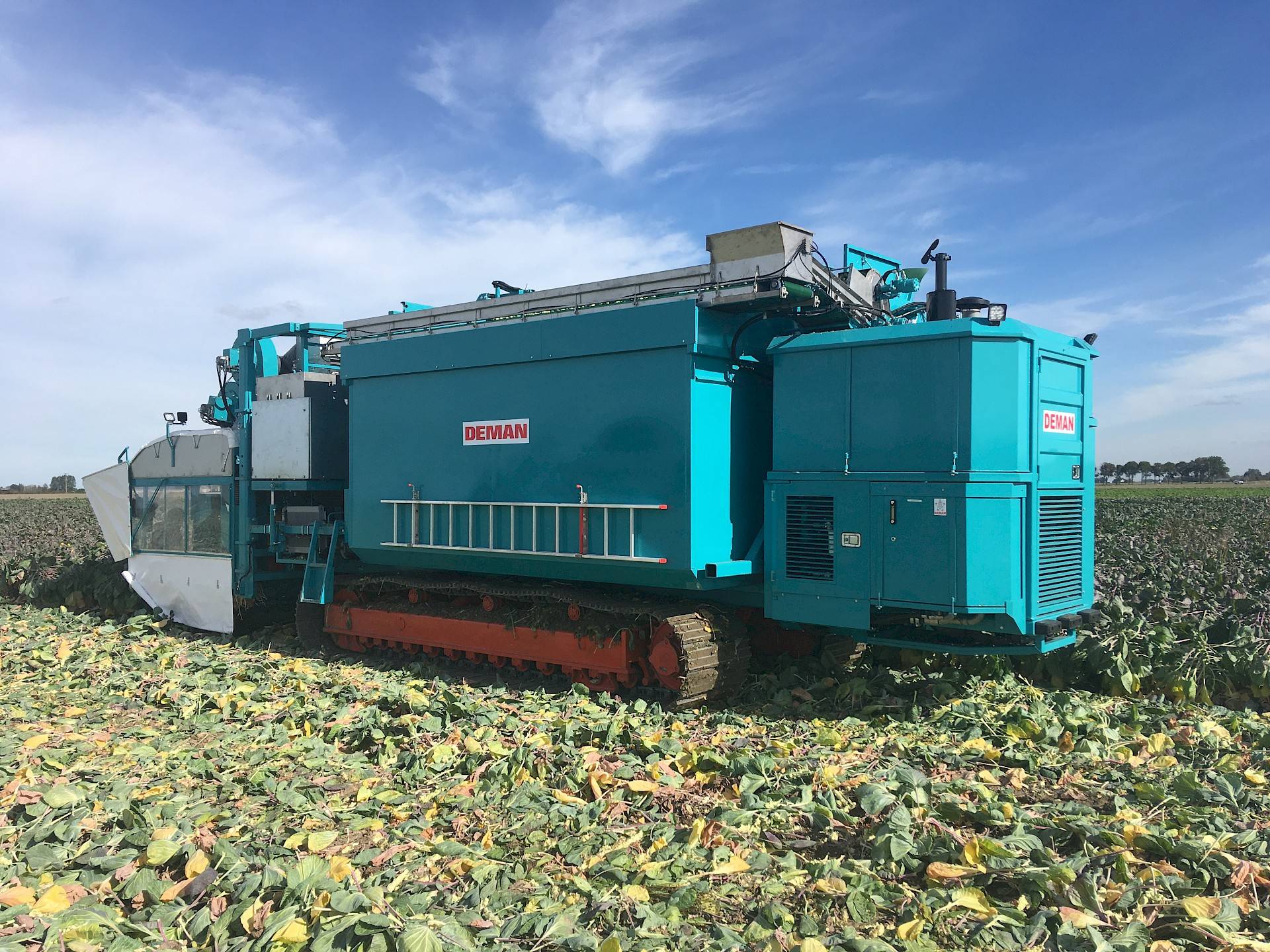

ZP4-OS: Self-driving sprout harvester IV-row with optisort on field

Strength and technology combined

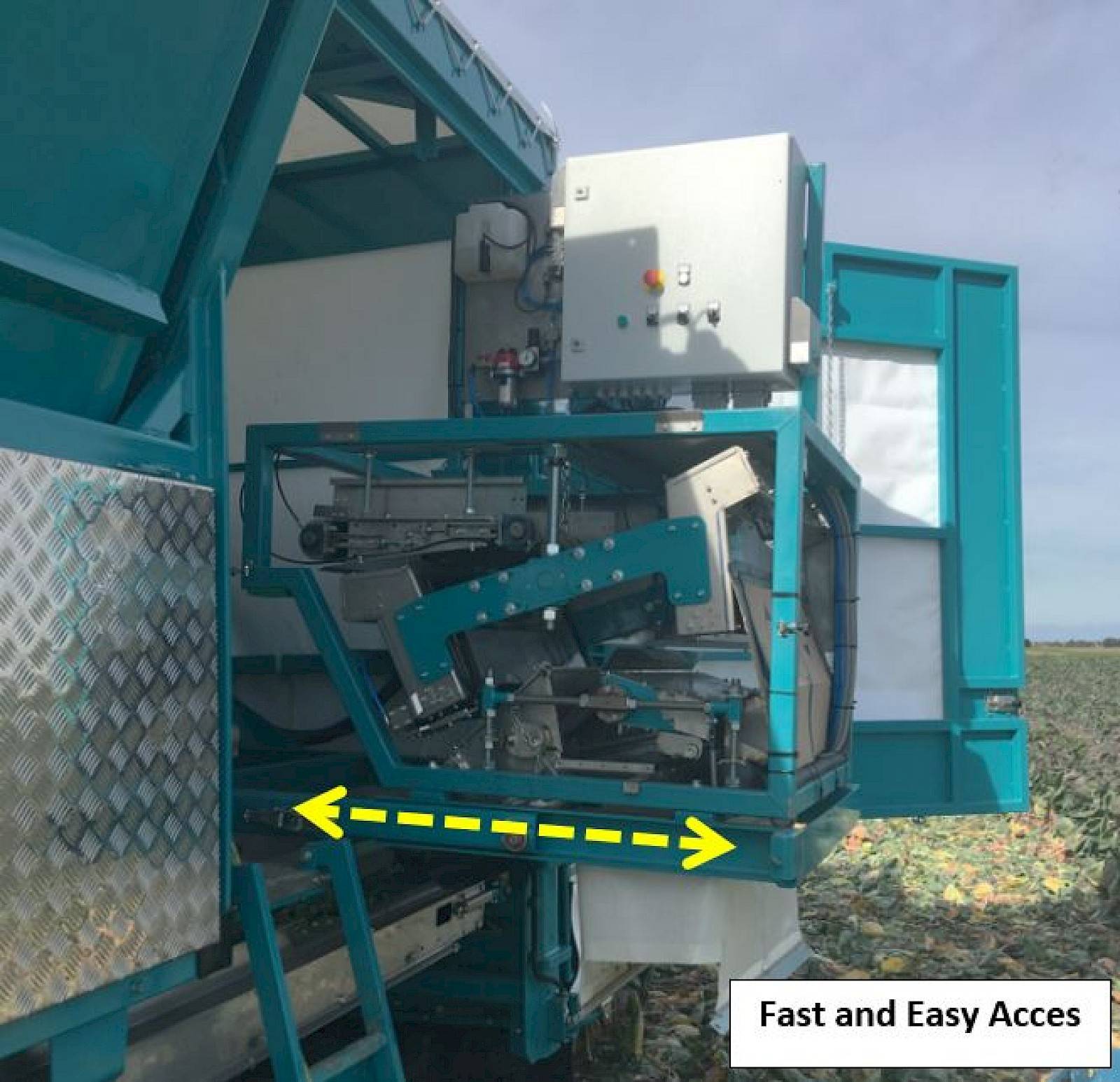

The ZP4-OS, an upgraded version of the ZP4, is equipped with the Deman Optisort Colour Sorter, an ingenious sorting mechanism that accelerates the sorting process of the sprout harvest. The sprouts move over a system of conveyor belts and are sorted by size. Sprouts that are too large or too small are removed along with the leaves. The optical module recognizes the bad or rotten produce and makes sure that lower quality sprouts are sorted and removed. This technology allows large quantities of sprouts to be processed very quickly.

User comfort

The ZP4-OS is connected to the internet and can be monitored from the comfort of your home. The performance of the ZP4-OS can be monitored over time. Among other things you can find out when the machine has stopped, how much was harvested and at what speed.

Build to last

All components of the Deman plucking system are developed and produced in-house with one goal in mind; providing the best harvesting results in every condition. Each component has been studied in detail to obtain an extremely reliable system. Standardized components are carefully selected and are available worldwide.

Standard configuration

  • Eject rollers
  • Centering Mechanism
  • Storage for personal materials (side doors)
  • Radio with bluetooth
  • Digital Dashboard
  • Centralised HMI for operations and visualisation
  • Undercarriage S30-30
    • 54 plates for undercarriage width 900 mm (= 3.5m long bunker)
    • Bosch hydromatic-Transmetal Bonfiglioli-Berco chains
  • Undercarriage S30-30
    • 57 plates for undercarriage width 900 mm (= 4m long bunker)
    • Bosch hydromatic-Transmetal Bonfiglioli-Berco chains
  • Camera with 3 channels
  • FPT diesel engine N45 STAGE V, 125kw at 2200 rpm
  • Cabin heating 5DL Airtronic
  • Width: 3450 mm
  • Height: 3420 mm
  • Length: 10065 mm (3,5m bunker) - 10565mm (4m bunker)
  • Row distance between Brussels-sprouts 700 mm (27.6”)- 750 mm (29.5”)
  • Diesel tank: 950l
  • Twin Turbine Technology
  • Centralised greasing system that is controlled by HMI
  • Weight empty: aprox. 24000 kg (45896 lb)
  • Bunker volume: 17m³ (1037391 cu in)

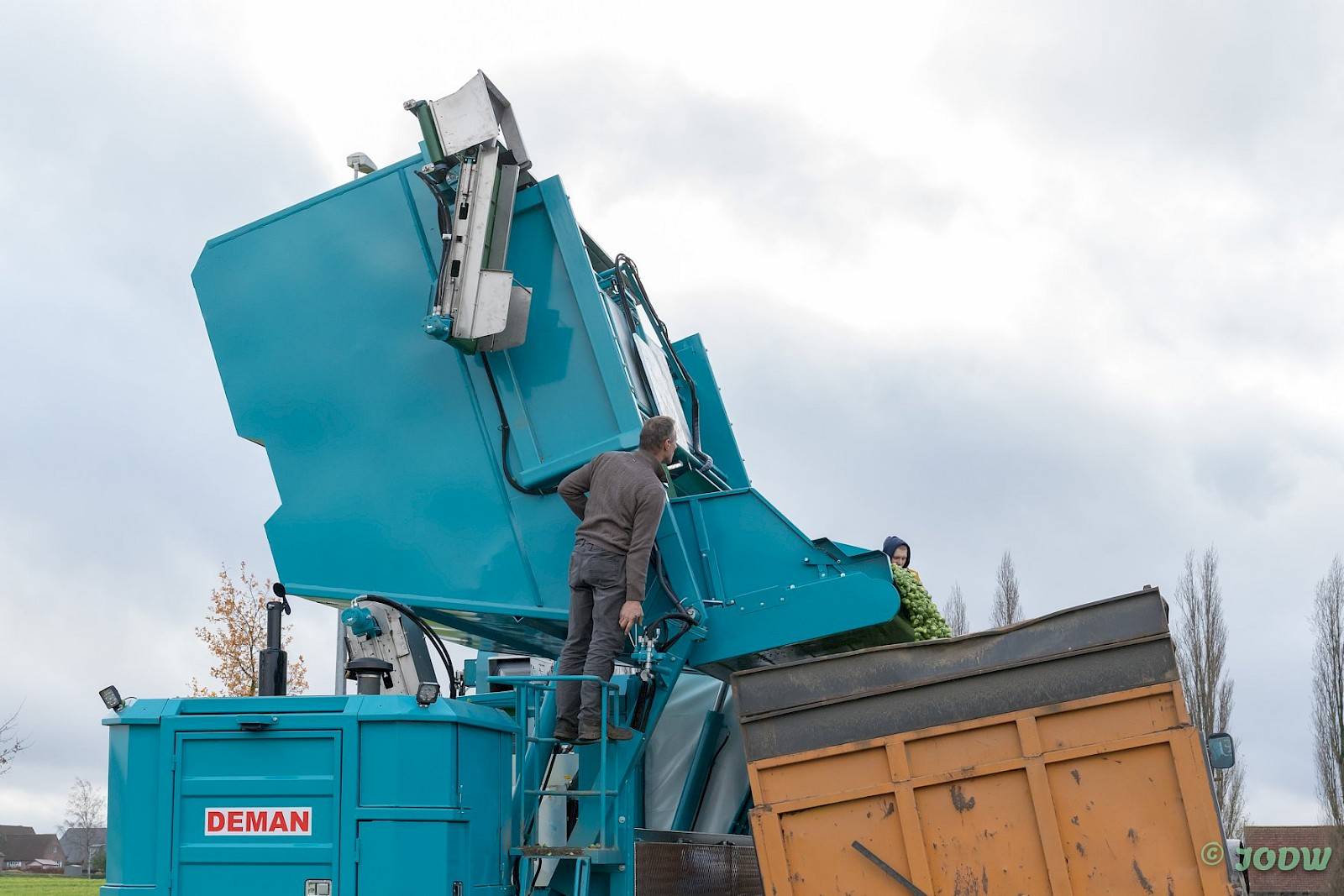

  • Unloading conveyor belt on bunker
  • Undercarriage with oil lubricated chains instead of greased chains.
  • Row distance between Brussels-sprouts 600mm (23.6”) - 650 mm (25.6”)
  • Fuel pump 24VDC for transferring fuel

Download the full version of the folder.
